Jenkins dashboard report with customization

trupti bhatt

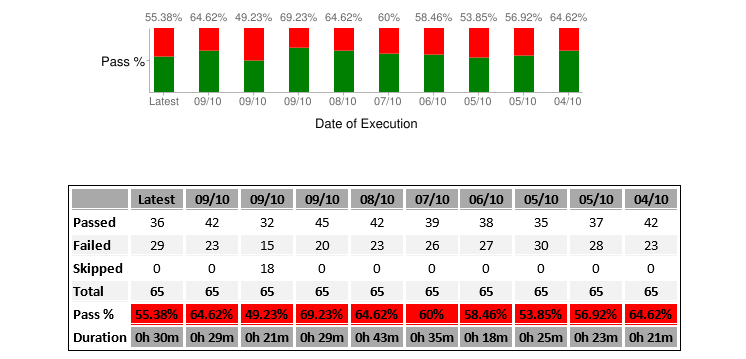

I want to get the jenkins report as in this template:

enter image description here

so which plugin will help me to get such kind of report?

I have tried multiple plugins, but no luck. I have tried test analyzer report, dashboard view and jenkins matrix and trends plugin.


I think Groovy scripts may help. can anyone help me on it?




Thank you,

Trupti Bhatt

--
You received this message because you are subscribed to the Google Groups "Jenkins Users" group.
To unsubscribe from this group and stop receiving emails from it, send an email to [hidden email].
To view this discussion on the web visit https://groups.google.com/d/msgid/jenkinsci-users/291de8a3-6bf5-4d5e-ae15-625044d11aaa%40googlegroups.com.
For more options, visit https://groups.google.com/d/optout.
Reply | Threaded
Open this post in threaded view
|

Re: Jenkins dashboard report with customization

RAJENDRA PRASAD
Hi Tripti,
You are correct there is no  plugin that can help you to create a custom dashboard specified by you.

All you need to write a groovy script to  access Jenkins job history and prepare  report according to your need


First get list of jobs via groovy script:

Jenkins.instance.getAllItems(Job.class).each{
  println it.name + " - " + it.class
  }

Next get each job and get build status :
Following link has  script that can help you in that:


You need to use groovy plugin and it looks like below link.


I know I didn't have you full solution but I hope this will give some direction for to implement your requirement.

Thanks
Rajendra



On Tue, 6 Nov, 2018, 15:41 trupti bhatt <[hidden email] wrote:

I want to get the jenkins report as in this template:

enter image description here

so which plugin will help me to get such kind of report?

I have tried multiple plugins, but no luck. I have tried test analyzer report, dashboard view and jenkins matrix and trends plugin.


I think Groovy scripts may help. can anyone help me on it?




Thank you,

Trupti Bhatt

--
You received this message because you are subscribed to the Google Groups "Jenkins Users" group.
To unsubscribe from this group and stop receiving emails from it, send an email to [hidden email].
To view this discussion on the web visit https://groups.google.com/d/msgid/jenkinsci-users/291de8a3-6bf5-4d5e-ae15-625044d11aaa%40googlegroups.com.
For more options, visit https://groups.google.com/d/optout.

--
You received this message because you are subscribed to the Google Groups "Jenkins Users" group.
To unsubscribe from this group and stop receiving emails from it, send an email to [hidden email].
To view this discussion on the web visit https://groups.google.com/d/msgid/jenkinsci-users/CAMrg02RhWnOG3Pc2MoYuzpdTdSkQtd4Km6i90r1aOs85i%2BFurg%40mail.gmail.com.
For more options, visit https://groups.google.com/d/optout.
Reply | Threaded
Open this post in threaded view
|

Re: Jenkins dashboard report with customization

trupti bhatt
Thanks Rajendra.

I have tried following code: but throwing me compilation error:

Jenkins.instance.getAllItems(Job.class).each{
  println it.name + " - " + it.class

 def jobBuilds=it.getBuilds()
//for each of such jobs we can get all the builds (or you can limit the number at your convenience)
    jobBuilds.each { build ->
      def runningSince = groovy.time.TimeCategory.minus( new Date(), build.getTime() )
      def currentStatus = build.buildStatusSummary.message
 def cause = build.getCauses()[0]

 println "Build: ${build} | Since: ${runningSince} | Status: ${currentStatus} | Cause: ${cause}"
 // You can get all the information available for build parameters.
      def parameters = build.getAction(ParametersAction)?.parameters
      parameters.each {
        println "Type: ${it.class} Name: ${it.name}, Value: ${it.dump()}"
}
}
  }


Error Is :
ERROR: Build step failed with exception
groovy.lang.MissingPropertyException: No such property: Jenkins for class: Script1
at org.codehaus.groovy.runtime.ScriptBytecodeAdapter.unwrap(ScriptBytecodeAdapter.java:53)
at org.codehaus.groovy.runtime.callsite.PogoGetPropertySite.getProperty(PogoGetPropertySite.java:52)
at org.codehaus.groovy.runtime.callsite.AbstractCallSite.callGroovyObjectGetProperty(AbstractCallSite.java:307)
at Script1.run(Script1.groovy:1)
at groovy.lang.GroovyShell.evaluate(GroovyShell.java:585)
at groovy.lang.GroovyShell.evaluate(GroovyShell.java:623)
at groovy.lang.GroovyShell.evaluate(GroovyShell.java:594)
at org.jenkinsci.plugins.scriptsecurity.sandbox.groovy.SecureGroovyScript.evaluate(SecureGroovyScript.java:343)
at hudson.plugins.groovy.SystemGroovy.run(SystemGroovy.java:95)
at hudson.plugins.groovy.SystemGroovy.perform(SystemGroovy.java:59)
at hudson.tasks.BuildStepMonitor$1.perform(BuildStepMonitor.java:20)
at hudson.model.AbstractBuild$AbstractBuildExecution.perform(AbstractBuild.java:744)
at hudson.model.Build$BuildExecution.build(Build.java:206)
at hudson.model.Build$BuildExecution.doRun(Build.java:163)
at hudson.model.AbstractBuild$AbstractBuildExecution.run(AbstractBuild.java:504)
at hudson.model.Run.execute(Run.java:1815)
at hudson.model.FreeStyleBuild.run(FreeStyleBuild.java:43)
at hudson.model.ResourceController.execute(ResourceController.java:97)
at hudson.model.Executor.run(Executor.java:429)
Build step 'Execute system Groovy script' marked build as failure
